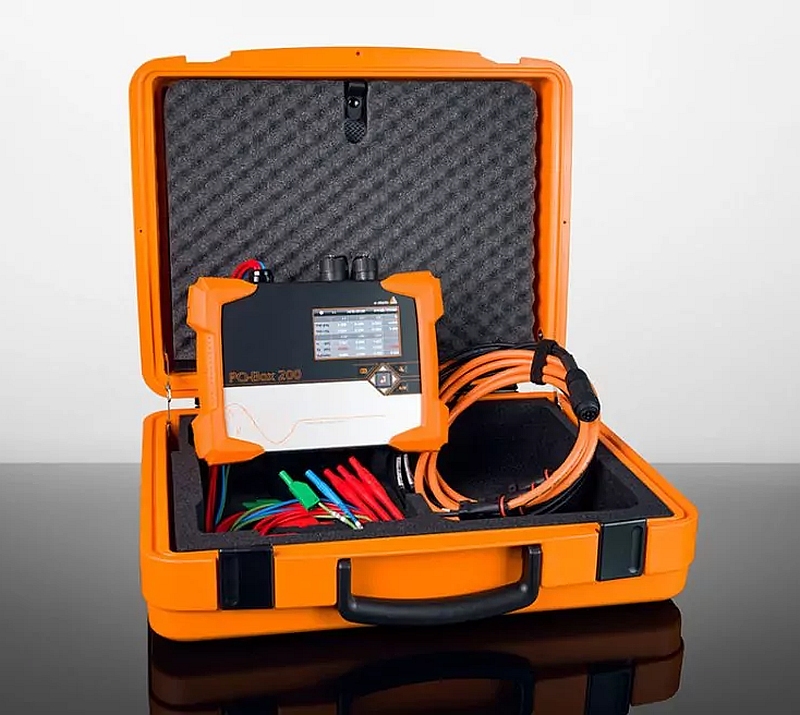

The PQ-Box 200 from A.Eberle is an expansion of the PQ-Box 100 and PQ-Box 150 for those needing high-speed transient data capture. It allows you to rapidly locate the causes of network faults due to its wide range of triggering capabilities.

Note: All PQ-Box products share the same setting and reporting software (WinPQ mobile), allowing users to operate a mix of tools with little additional support.

At a glance

• PQ-Box 200 mobile power quality meter is ideal for use in harsh environments and in tight spaces
• Record rapid switching transients at a rate of 4 MHz
• Additional A/D card with +/- 5 kV and 2 MHZ transient capture capability, plus both an Ethernet and USB interface, a binary trigger input and low voltage analogue input channel
• WLAN interface for wireless communication with the software and the app
• Ripple control signal analysis
• Free WinPQ mobile analysis software
