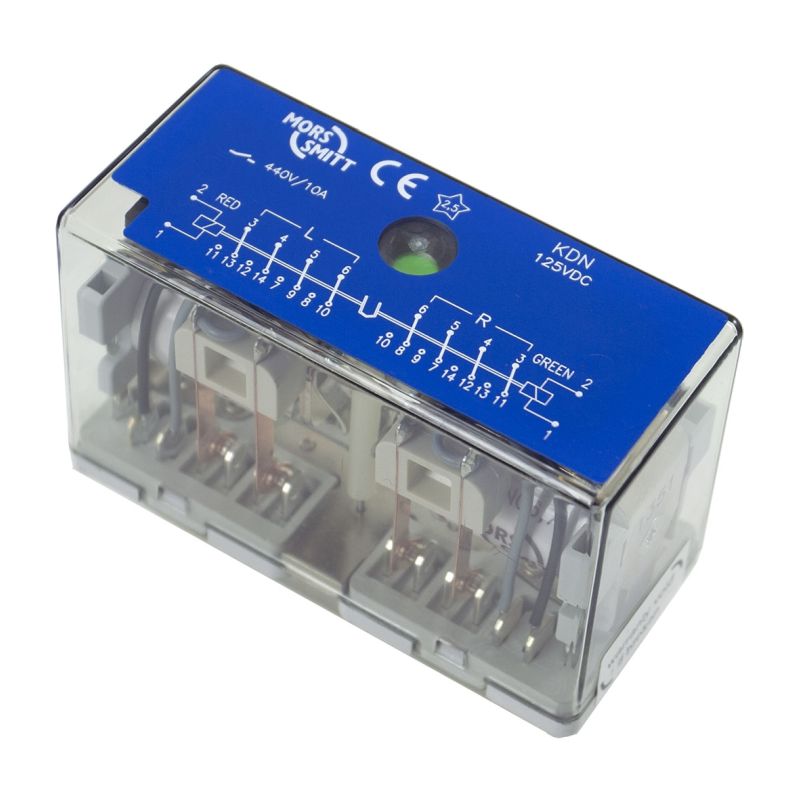

Heavy-duty latching/bistable relay for demanding applications. Equipped with mechanical latch and position indicator. Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.

• Plug in relay
• Smitt-style pinning
• 8 C/O contacts
• Rated load 1A /110V DC1 , 10A/230V AC1
• Coil voltages 12...220 VDC, 24...380 VAC
• AC&DC coil
• Continuous coil energization permitted
• Integrated 'snap-lock' retaining clip
• Dimensions 40 x 88 x 56 mm

Quick guide to popular products:

• D-series = standard capacity 4 change-over contacts
• D-B-series = high current 4 change-over contacts
• D8-series = 8 change-over contacts
• BD-series = latching (bistable) relays. 3 change-over, 1 x normal closed contact
• BD-B-series = Above with magnetic blowout option selected
• KDN-series = mechanical latching (bistable relays), 8 change-over contacts
