The Siemens RUGGEDCOM series of compact Ethernet Layer 2 switches are designed for tight spaces. They come with a full array of intelligent functionalities for reliable operation in harsh industrial environments.

At a glance

• RUGGEDCOM compact Ethernet Layer 2 switches are designed to fit where space is constrained
• Versatile products offering a variety of port configurations, functionalities and power options can be easily customised for industrial applications
• Advanced security features help protect sensitive data from unauthorised access
• Easy to deploy and maintain, with simple configuration and management tools that help reduce downtime and improve network efficiency

The range of RUGGEDCOM Compact Ethernet Layer 2 switches

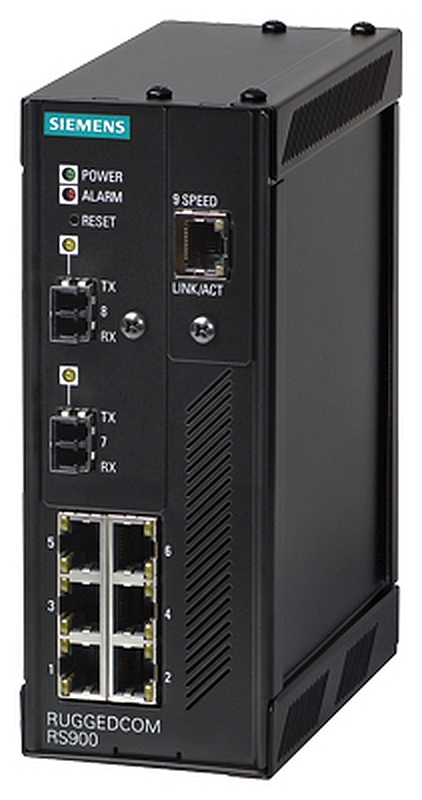

RUGGEDCOM RS900

• 9-port managed Ethernet switch with fibre uplinks
• 6 x 10/100BASE-TX + 3 x 1000BASE-FX

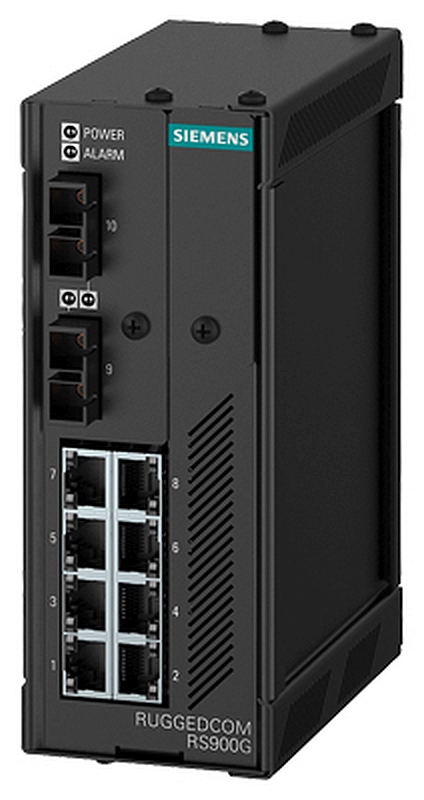

RUGGEDCOM RS900G

• 10-port managed Ethernet switch with Gigabit uplinks
• 8 x 10/100BASE-TX + 2 x 1000BASE-X
• Railway application certification - EN 50121-4
• Marine certification - ABS

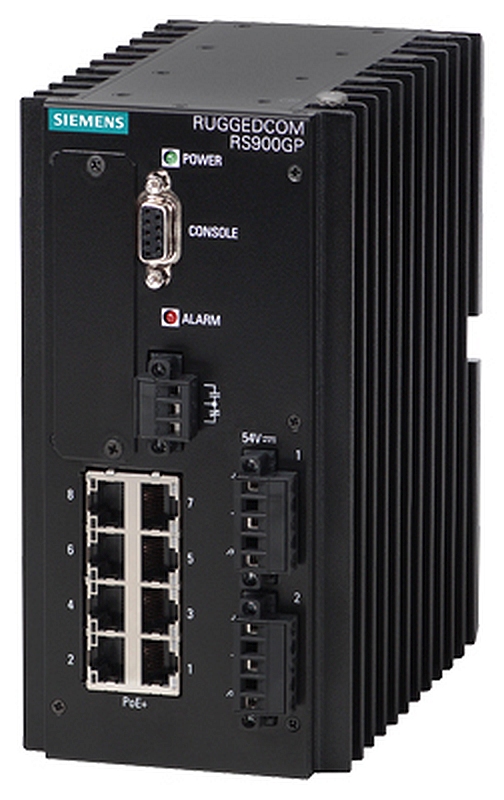

RUGGEDCOM RS900GP

• 10-port managed PoE switch with Gigabit uplinks
• 8 x 10/100BASE-TX IEEE 802.3af/at compliant ports
• Up to 2 x 10/100/1000BASE-T or 2 x 100/1000BASE-X

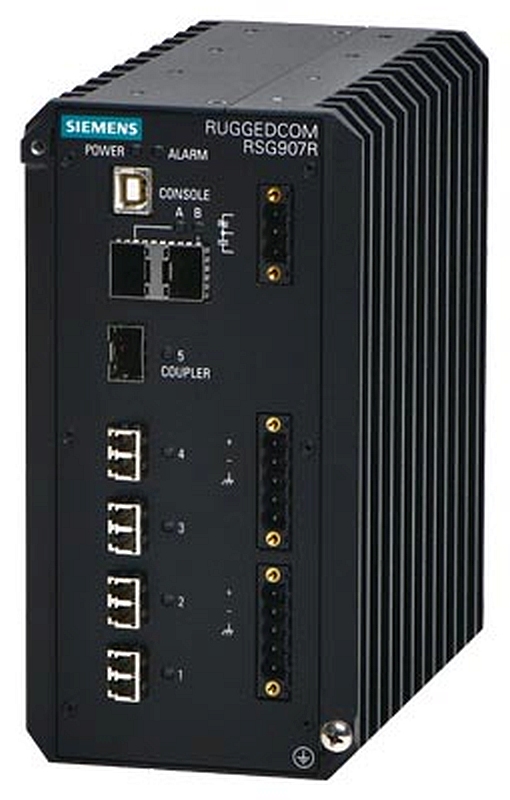

RUGGEDCOM RSG907R

• 7-port managed Gigabit IEEE 1588 compatible RedBox and Ethernet switch supporting HSR and PRP
• 3 x 1000BASE-X RNA (Redundant Network Access) SFP Ethernet ports with coupler according to IEC 62439-3
• 4 x 100BASE-FX VDAN (Virtual Dual Attached Node) LC fibre optic ports
• IEEE 1588 v2 ordinary and transparent clocks

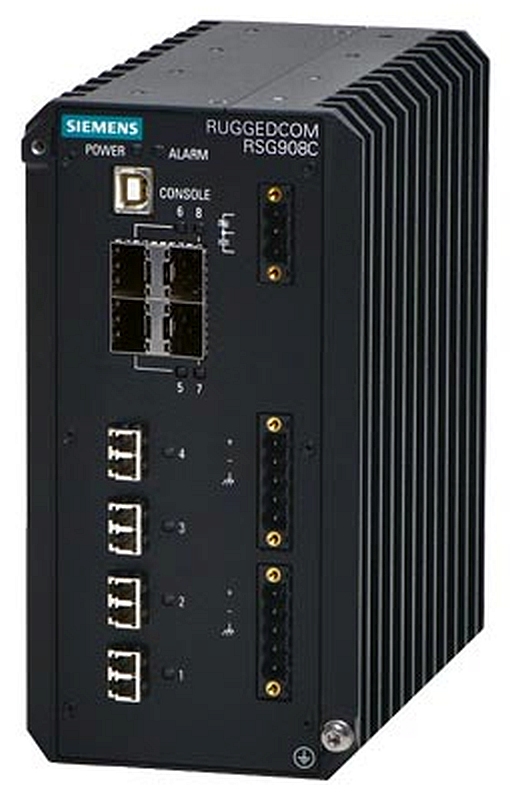

RUGGEDCOM RSG908C

• 8-port managed Gigabit IEEE 1588 compatible Ethernet switch
• 4 x 1000BASE-X SFP uplink Ethernet ports
• 4 x 1000BASE-FX LC fibre optic ports
• IEEE 1588 v2 ordinary and transparent clocks

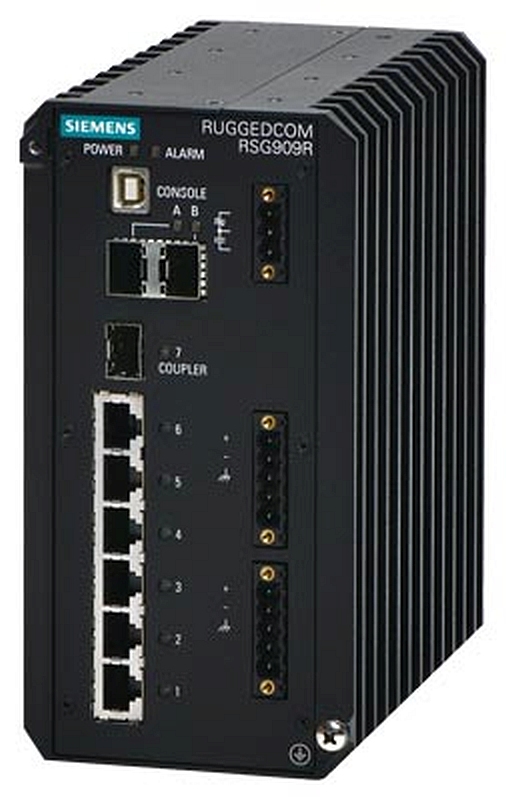

RUGGEDCOM RSG909R

• 9-port managed Gigabit IEEE 1588 compatible RedBox and Ethernet switch supporting HSR and PRP
• 3 x 1000BASE-X RNA and coupler SFP Ethernet ports according to IEC 62439-3
• 6 x 10/100/1000BASE-TX VDAN RJ45 copper Ethernet ports
• IEEE 1588 v2 ordinary and transparent clocks

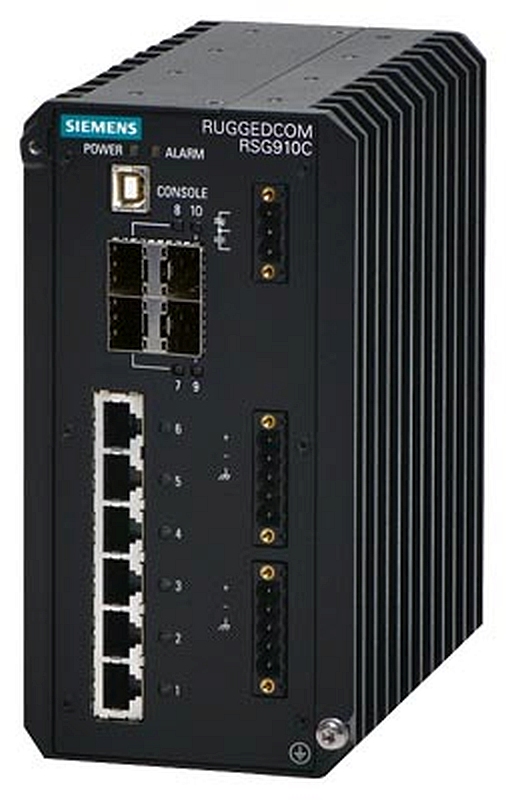

RUGGEDCOM RSG910C

• 10-port managed Gigabit IEEE 1588 compatible Ethernet switch
• 3 x 1000BASE-X SFP uplink Ethernet ports
• 6 x 10/100/1000BASE-TX RJ45 copper Ethernet ports
• IEEE 1588 v2 ordinary and transparent clocks

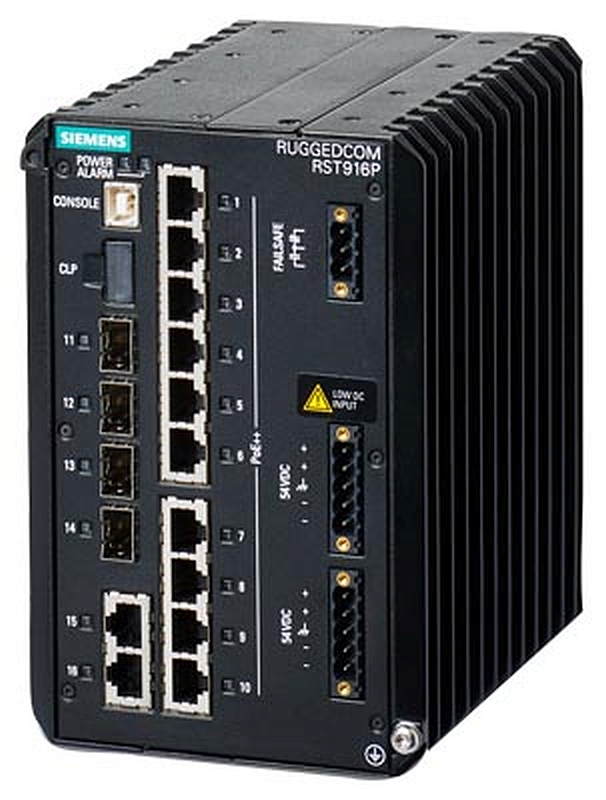

RUGGEDCOM RST916P

• 16-port managed 10 Gigabit PoE switch
• 12 x 10/100/1000BASE-T RJ45 ports
• 4 x 1G BASE-X/1000BASE-X SFP+
• 10 x 10/100/1000BASE-T IEEE 802.3af/at/bt Type 3 compliant PoE ports
• IEEE 1588 v2 transparent clock
• Removable storage medium (CLP) for device configuration backup

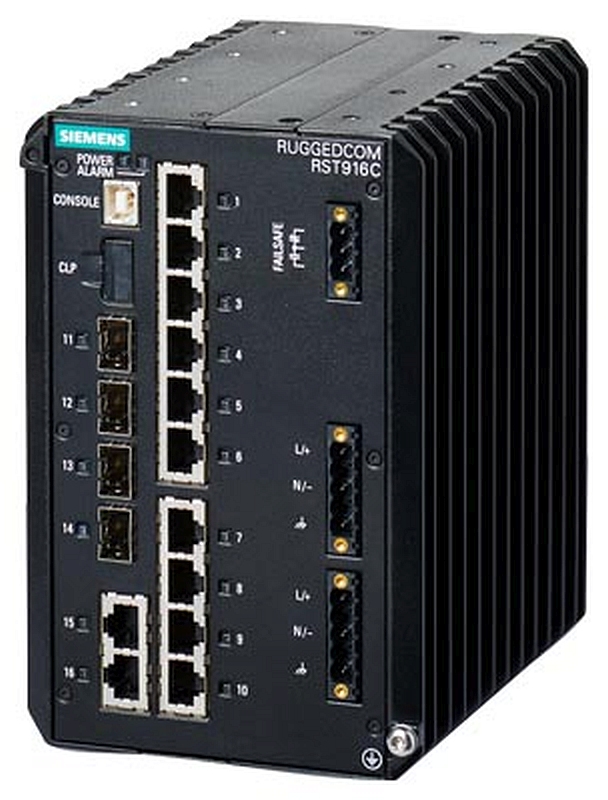

RUGGEDCOM RST916C

• 16-port managed 10 Gigabit IEEE 1588 compatible Ethernet switch
• 12 x 10/100/1000BASE-T RJ45 ports
• 4 x 1G/10G BASE-X/1000BASE-X SFP+
• IEEE 1588 v2 transparent clock
• Removable storage medium (CLP) for device configuration backup

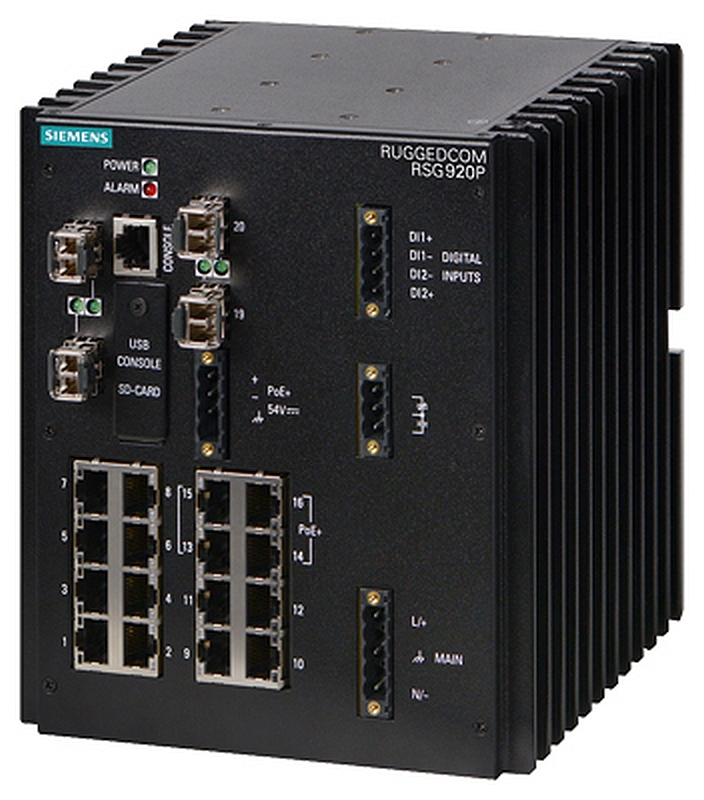

RUGGEDCOM RSG920P

• 20-port managed Gigabit PoE switch
• 12 x 10/100/1000BASE-T plus 4 x 100/1000BASE-X SFP plus 4 x 10/100/1000BASE-T PoE (IEEE 802.3af/at)
• Power up to four PoE-enabled devices when used with the RPS1300 power supply
• Micro SD card for configuration storage and firmware upgrade

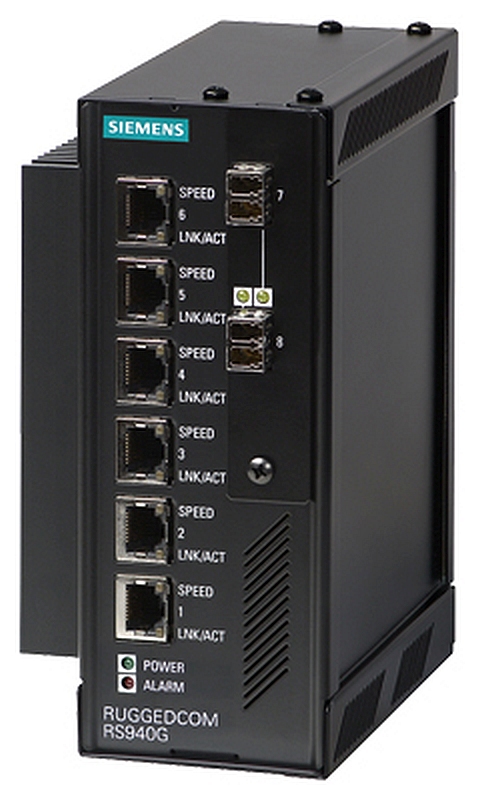

RUGGEDCOM RS940G

• 8-port managed 10 Gigabit Ethernet switch
• 6 x 10/100/1000BASE-T + optional 2 x 1000BASE-X

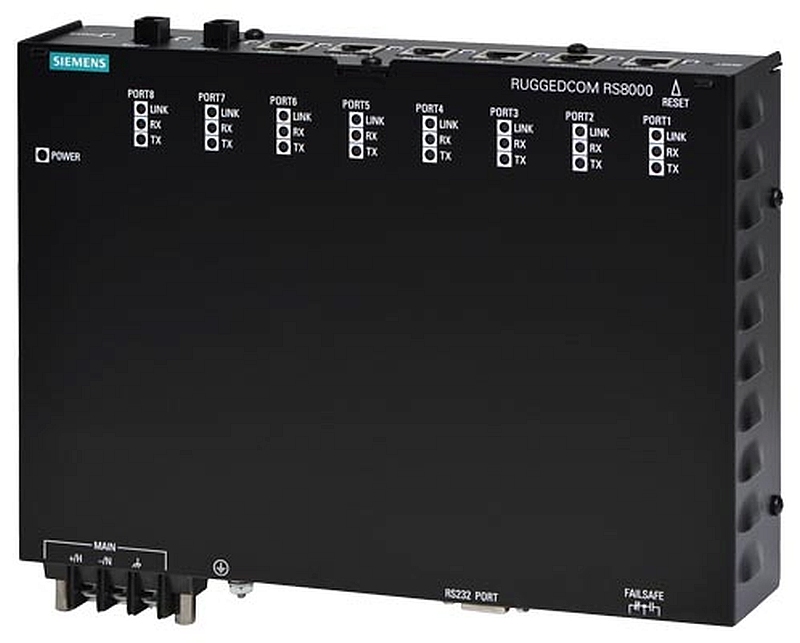

RUGGEDCOM RS8000 family

• 8-port managed/unmanaged Ethernet switch
• -40°C o +85°C operating temperature
• Fibre optical connectors - MTRJ, LC, ST
• RS8000: 8 x 100BASE-FX
• RS8000T: 6 x 10/100BASE-TX + 2 x 100BASE-FX
• RS8000H: 4 x 10/100BASE-TX + 4 x 100BASE-FX
• RS8000A: 2 x 10/100BASE-TX + 2 x 10BASE-FL + 4 x 100BASE-FX
